KOSGEB x Garaj Technology Development Center LED Video Wall Installation

The communication strength of an event hall depends critically on its display system. KOSGEB x Garaj Technology Development Center in Ankara needed a professional LED video wall for its event hall — sonopto. carried out all field operations under EMN Teknoloji's project scope.

Why an LED Video Wall?

The center serves many purposes: demo days, panel discussions, training programs and presentations. Classic projection lacks sufficient contrast in bright rooms, while a single large screen doesn't provide enough visual surface. An LED video wall offers superior brightness and scalability for high-ceiling, multi-purpose spaces.

Installation Process

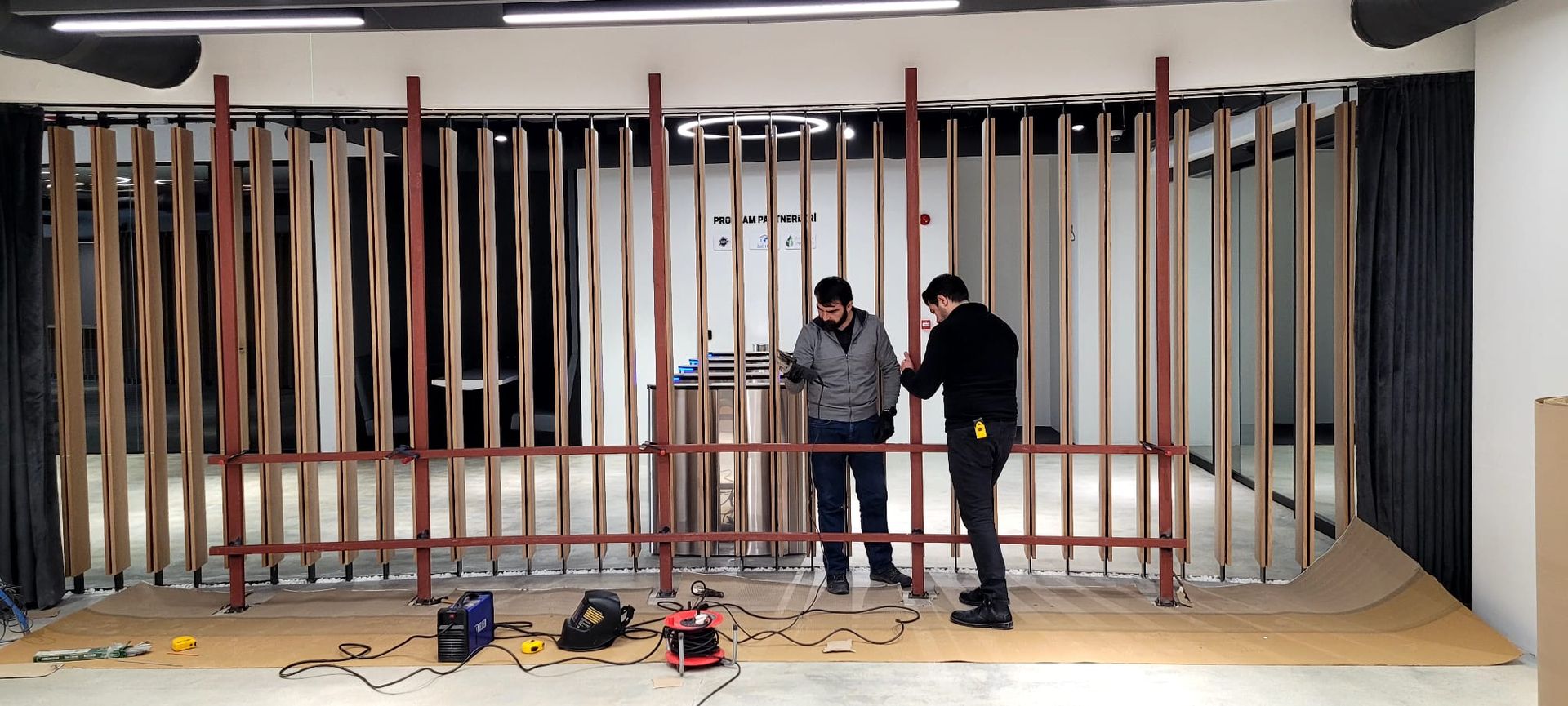

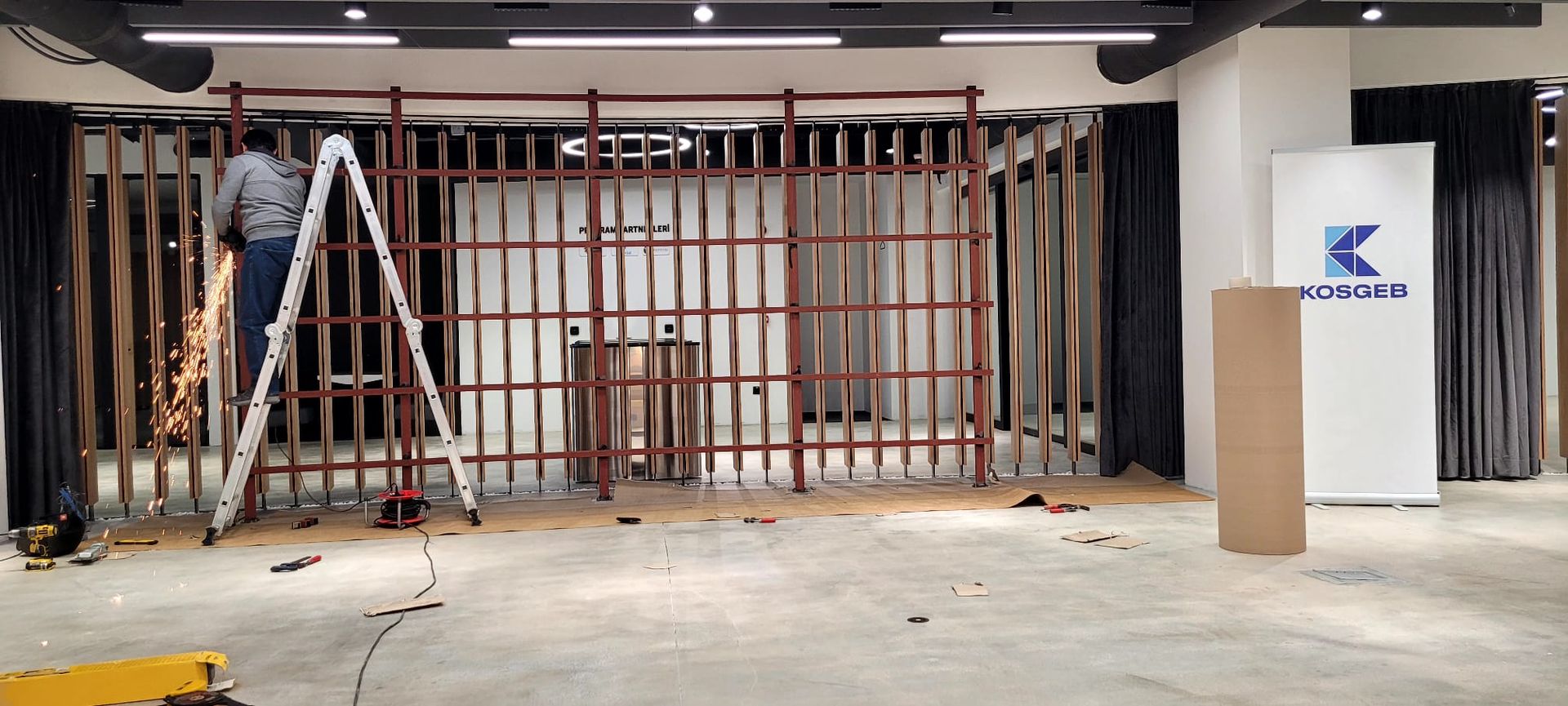

1. Support structure fabrication & installation: a custom steel support structure was designed for even weight distribution and vibration prevention; a ground-supported independent frame was chosen over wall mounting.

2. Infrastructure & cabling: electrical infrastructure and signal cabling were prepared, keeping rear service access for future maintenance and panel replacement.

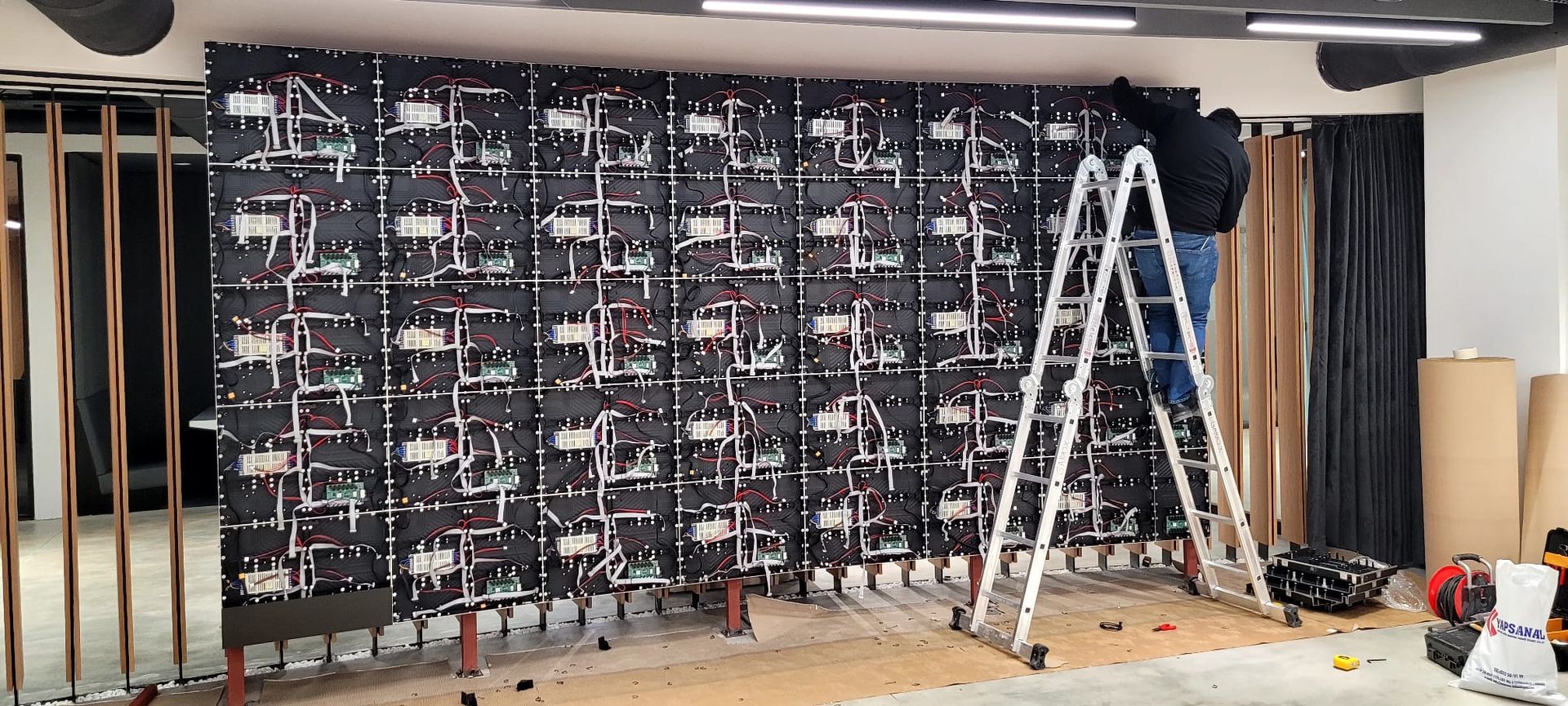

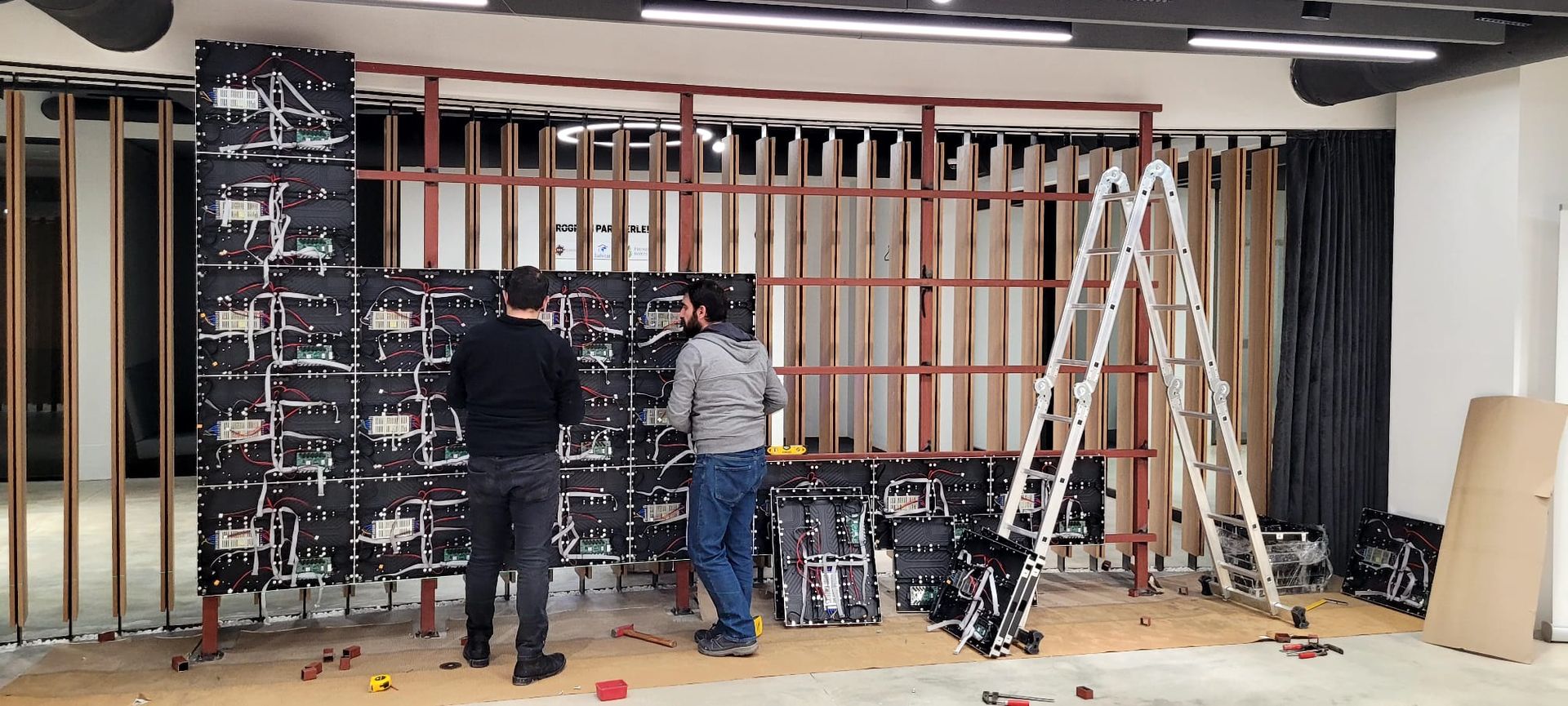

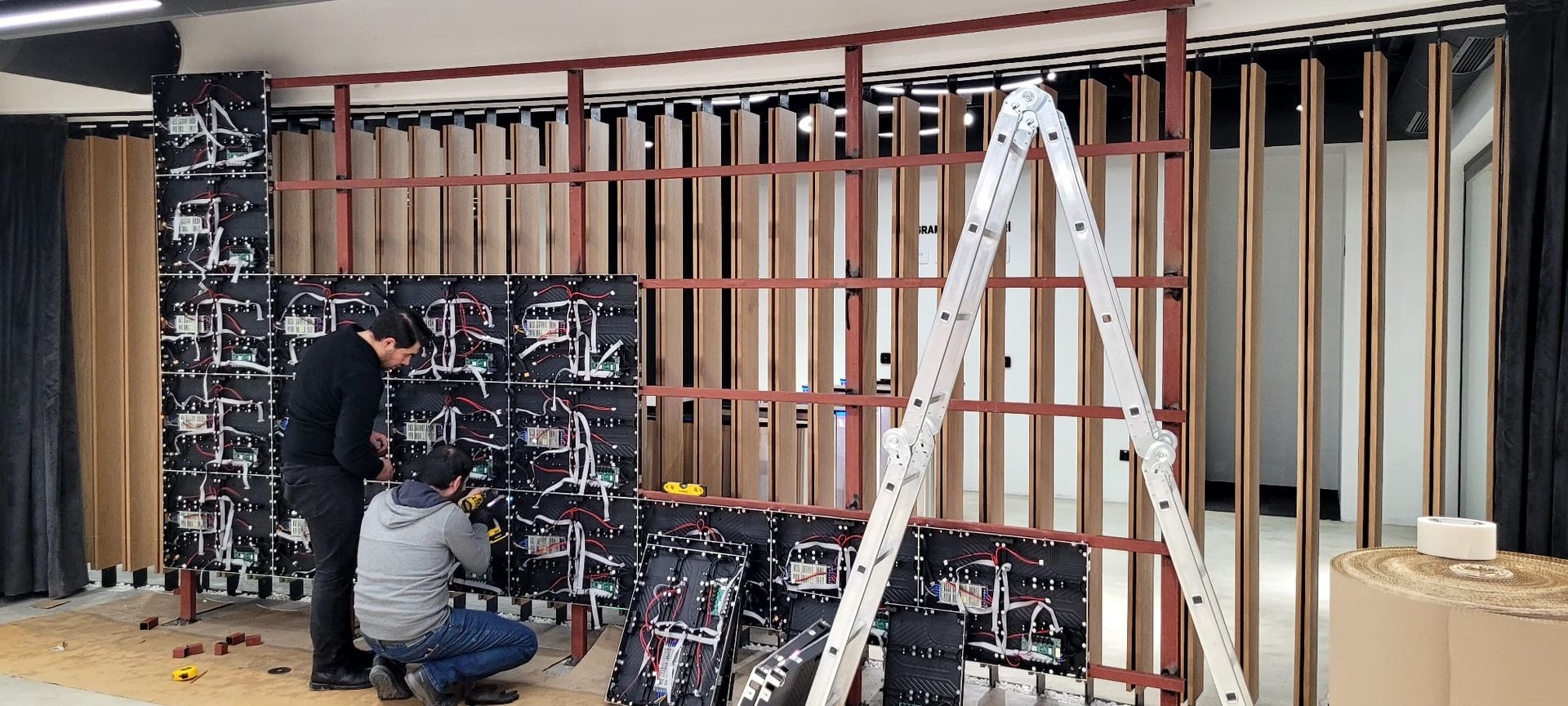

3. Modular panel installation: AET Displays LED panels were installed with millimeter-level alignment precision for pixel continuity.

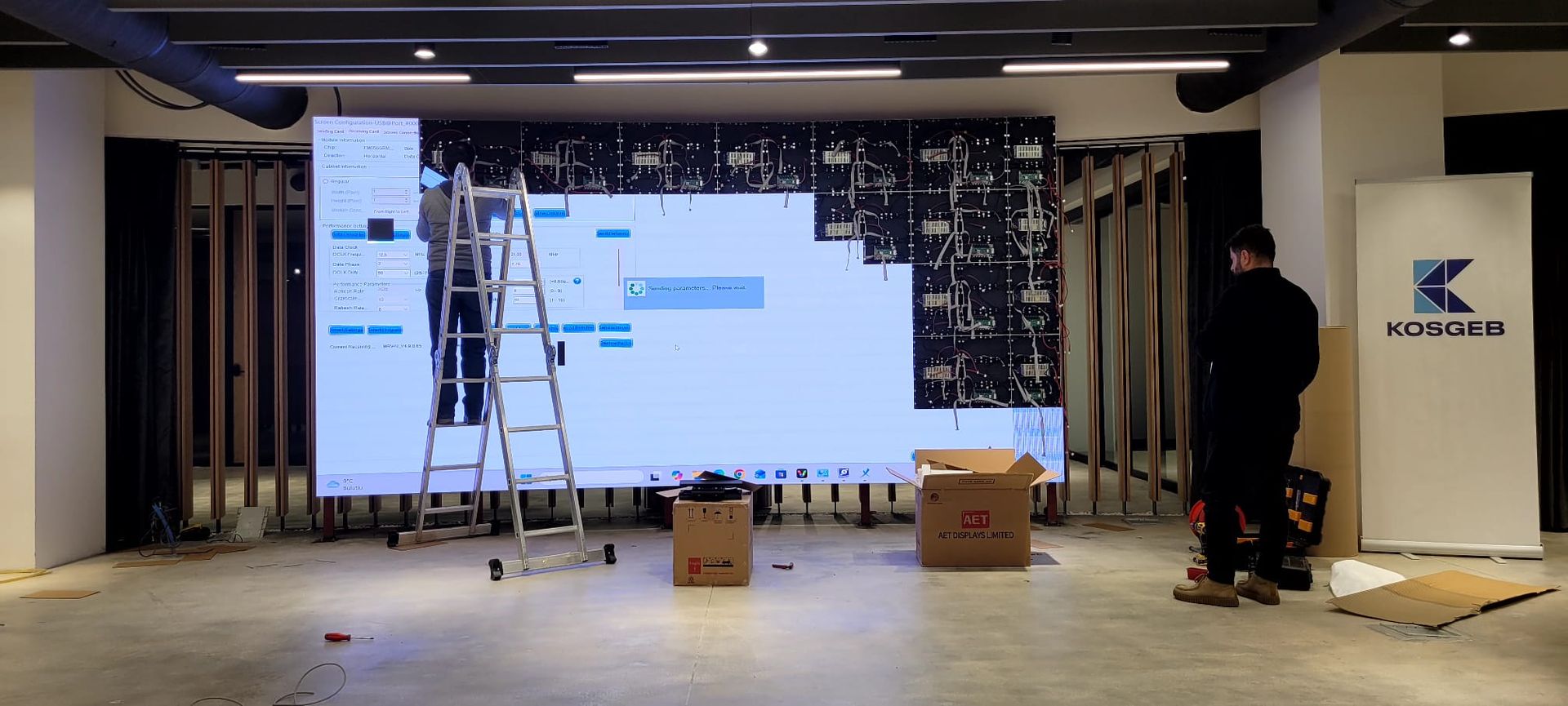

4. Calibration & testing: brightness and color calibration were performed and verified across content types (presentations, video, live feeds).

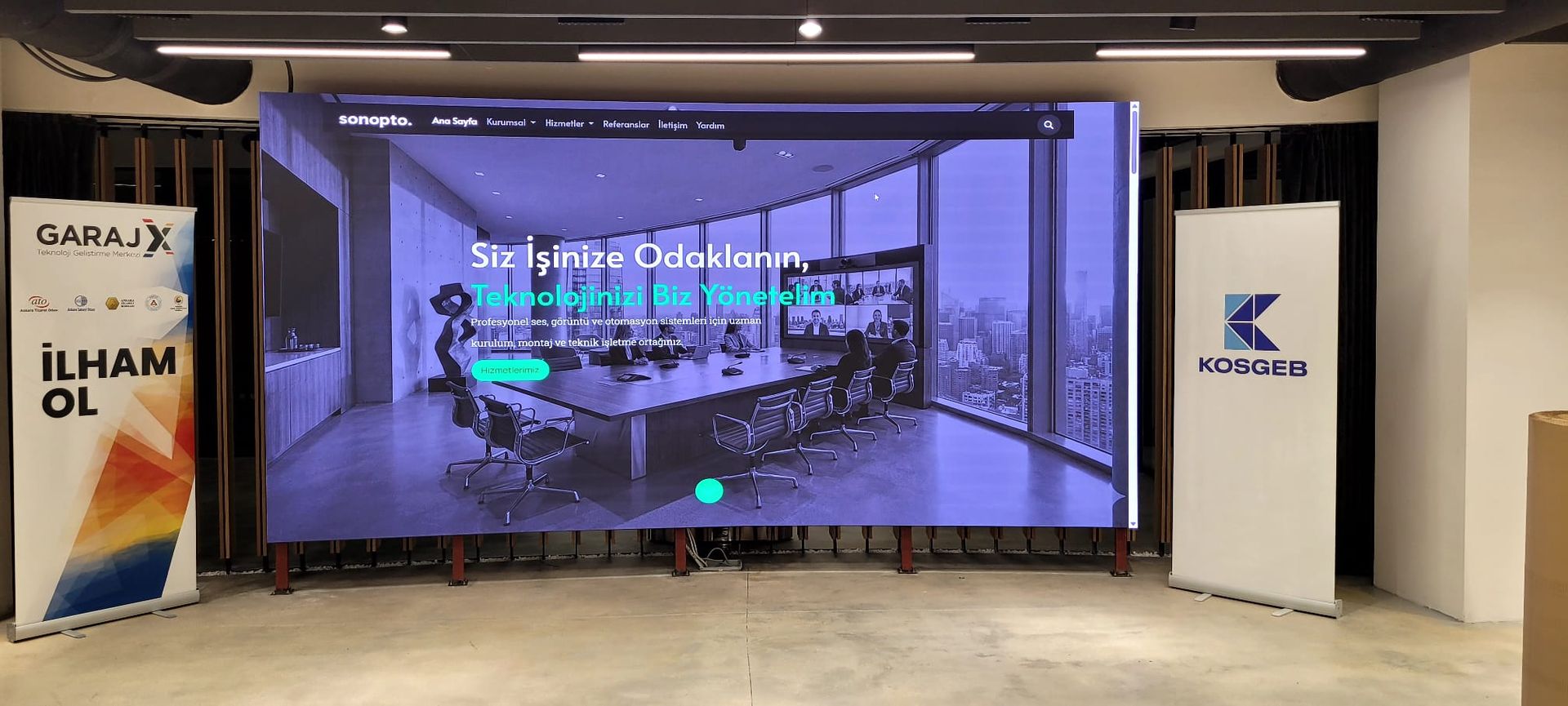

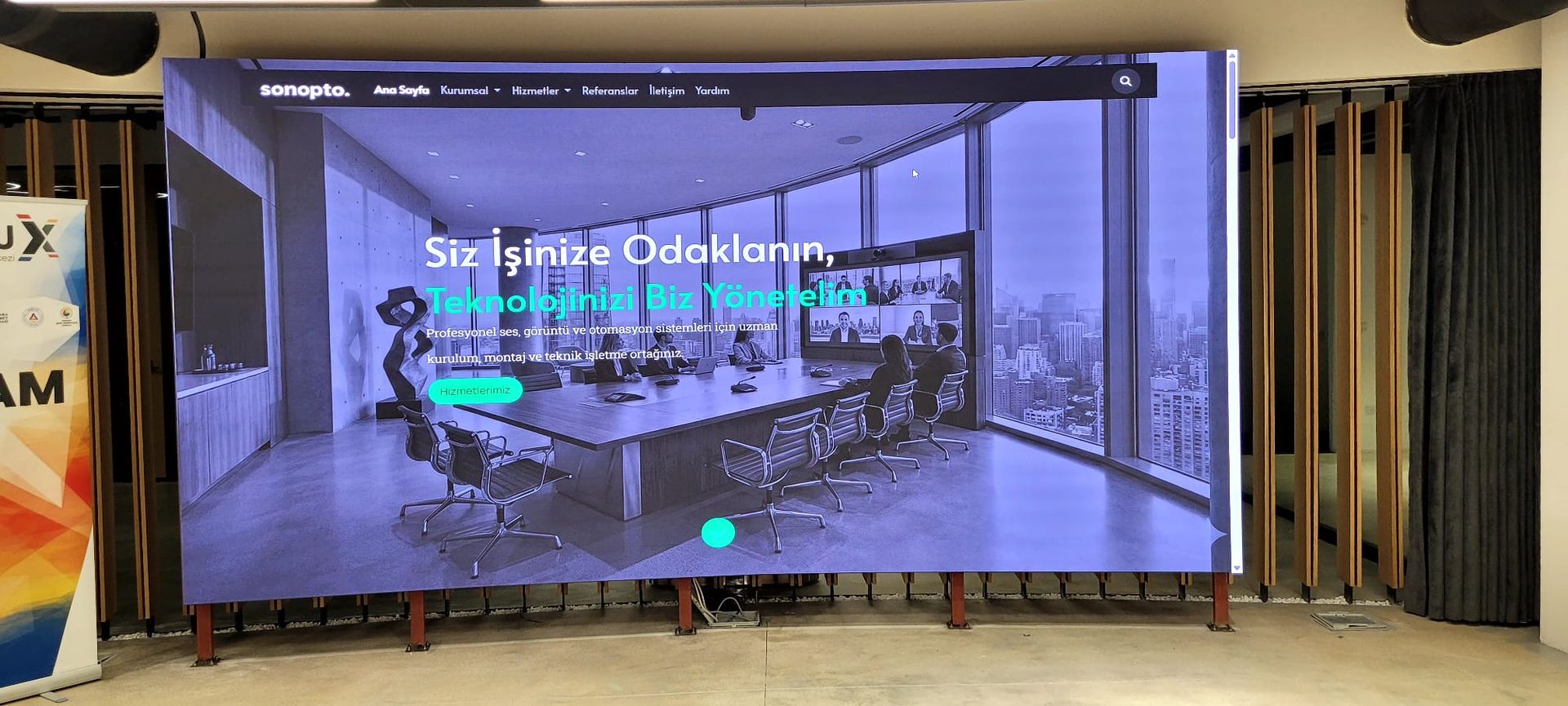

5. Activation & handover: final checks were completed, user training was provided, and the system went live for presentations, live broadcasts, educational content and corporate videos.

Partnership with EMN Teknoloji

sonopto. acted as the extended technical team handling all field operations, while EMN Teknoloji managed the customer relationship and system design — a clear example of sonopto.'s B2B business model.
